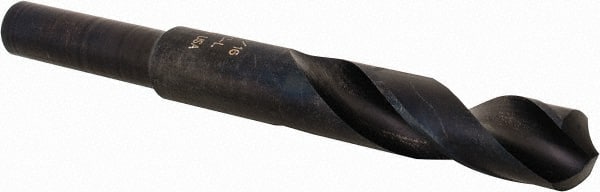

Reduced Shank Drill Bit: 5/16'' Dia, 1/4'' Shank Dia, 118 ™, High Speed Steel 2-13/16'' OAL, 1-3/8'' Flute Length, Coated Finish, Straight-Cylindrical Shank, RH Cut, Series 239
Item #: 00980565
Brand: Chicago-Latrobe
Model #: 56320
Product Specifications
| Drill Bit Size (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Tool Material | High Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Standard |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 1-3/8 |
| Overall Length (Inch) | 2-13/16 |
| Coating/Finish | Coated |
| Series | 239 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Shank Diameter (mm) | 0.2500 |
| Shank Diameter (Decimal Inch) | 1/4 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Tool Performance | General Purpose |
| Tool Application | Portable Drilling |
| Drill Length Type | Reduced Shank |
| Shank Length (Decimal Inch) | 0.8750 |
| Shank Length (mm) | 22.22 |
| Primary Workpiece Material | Wood; Aluminum; Sheet Metal |
| Secondary Workpiece Material | Wood; Aluminum; Mild Steel; Sheet Metal |
| Coolant | No |
