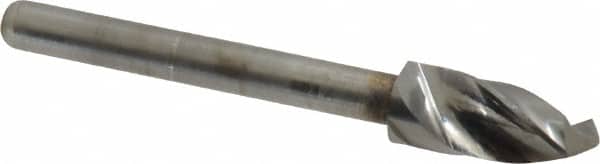

#6, 130° Drill Point, 1/8″ Shank Diam, Regular Spiral Circuit Board Drill Bit 1/2″ Flute Length, 1-1/2″ OAL, Series 155
Item #: 00902064
Brand: Kyocera
Model #: 155-2040.500
Product Specifications
| Drill Bit Size (Wire) | #6 |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Drill Bit Size (mm) | 5.18 |
| Drill Point Angle | 130 ? |
| Tool Material | Carbide |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (Inch) | 1/2 |
| Flute Length (mm) | 12.70 |
| Flute Length (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Regular Spiral |
| Series | 155 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0003 |
| Material Application | Fiber-Reinforced Polymers; Aluminum; Stainless Steel; Cast Iron; Cobalt Alloy; Titanium; Nickel; Copper Alloy; Plastics |
