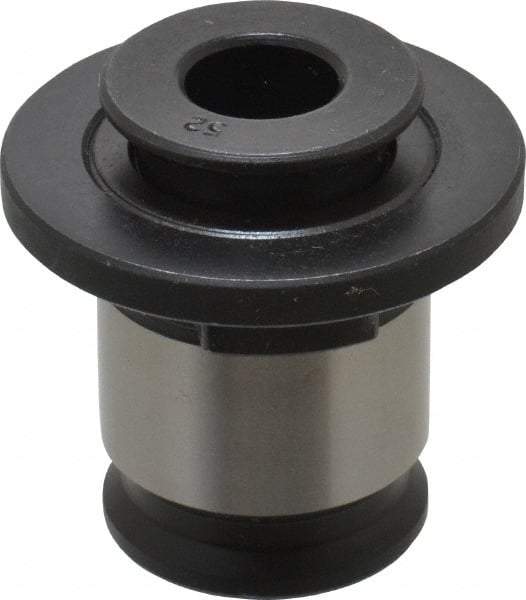

Bilz - 0.551" Tap Shank Diam, 0.433" Tap Square Size, M18 Tap, #2 Tapping Adapter - 0.4331" Projection, 1.181" Tap Depth, 1.8111" OAL, 1.22" Shank OD, Through Coolant, Series WE 2
Item #: 00629295
Brand: Bilz
Model #: 22100069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (mm) | M18 |
| Adapter Size | 2 |
| Tap Shank Diameter (mm) | 14.00 |
| Tap Shank Diameter (Decimal Inch) | 0.5510 |
| Tap Square Size (mm) | 11.00 |
| Tap Square Size (Decimal Inch) | 0.4330 |
| Quick Change | Yes |
| Projection (mm) | 11.00 |
| Projection (Decimal Inch) | 0.4331 |
| Tap Depth (mm) | 30.00 |
| Tap Depth (Decimal Inch) | 1.1810 |
| Series | WE 2 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8111 |
| Flange Diameter (mm) | 48.01 |
| Flange Diameter (Decimal Inch) | 1.8900 |
| Outside Shank Diameter (mm) | 30.99 |
| Outside Shank Diameter (Decimal Inch) | 1.2200 |
| Through Coolant | Yes |
| DIN Standard | DIN 376 |
| PSC Code | 5136 |
