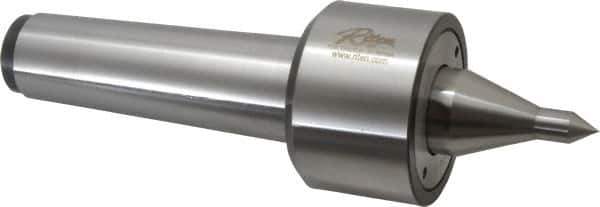

Riten - MT5 Taper Shank, 3-1/16" Head Diam 9,000 Lb Capacity Live Center - 5,000 Max RPM, 2-3/32" Head Length, 1/2" Point Diam, 2-1/2" Point Len, 1,100 Lb Max Workpc, 11-3/8" OAL, 15/16" Long Tip, Long Point
Item #: 00620617
Brand: Riten
Model #: 48105
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1100.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Point Length (Inch) | 2-1/2 |
| Accuracy (Decimal Inch) | 0.000000 |
| Tip Length (Inch) | 15/16 |
| Load Capacity (Lb.) | 9000.00 |
| Head Diameter (Inch) | 3-1/16 |
| Head Length (Inch) | 2-3/32 |
| Taper Length (Inch) | 5-3/16 |
| Overall Length (Decimal Inch) | 11.3760 |
| Point to Gauge Line (Decimal Inch) | 6.1880 |
| Gage Line Clearance (Inch) | 9/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
