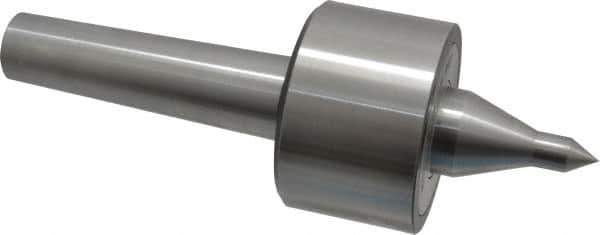

Riten - MT4 Taper Shank, 3" Head Diam 6,000 Lb Capacity Live Center - 4,000 Max RPM, 1-31/32" Head Length, 1/2" Point Diam, 2.2188" Point Len, 1,100 Lb Max Workpc, 8-5/8" OAL, 13/16" Long Tip, Long Point
Item #: 00620609
Brand: Riten
Model #: 48104
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1100.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Point Length (Inch) | 2.2188 |
| Accuracy (Decimal Inch) | 0.000000 |
| Tip Length (Inch) | 13/16 |
| Load Capacity (Lb.) | 6000.00 |
| Head Diameter (Inch) | 3 |
| Head Length (Inch) | 1-31/32 |
| Taper Length (Inch) | 4-1/16 |
| Overall Length (Decimal Inch) | 8.6260 |
| Point to Gauge Line (Decimal Inch) | 4.2900 |
| Gage Line Clearance (Inch) | 3/8 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
