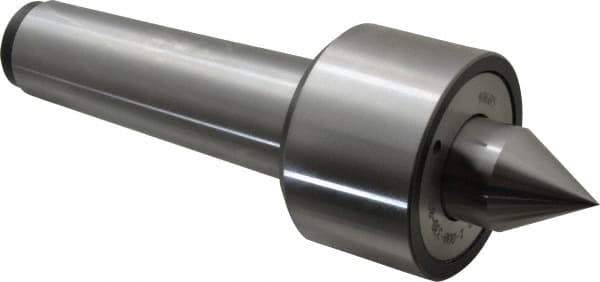

Riten - MT5 Taper Shank, 3-1/16" Head Diam 9,000 Lb Capacity Live Center - 5,000 Max RPM, 2-3/32" Head Length, 1-3/8" Point Diam, 1-13/16" Point Len, 2,800 Lb Max Workpc, 10-7/8" OAL, 2" Long Tip, Standard Point
Item #: 00620575
Brand: Riten
Model #: 48605
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2800.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-3/8 |
| Point Diameter (Decimal Inch) | 1.3750 |
| Point Length (Inch) | 1-13/16 |
| Accuracy (Decimal Inch) | 0.000000 |
| Tip Length (Inch) | 2 |
| Load Capacity (Lb.) | 9000.00 |
| Head Diameter (Inch) | 3-1/16 |
| Head Length (Inch) | 2-3/32 |
| Taper Length (Inch) | 5-3/16 |
| Overall Length (Decimal Inch) | 10.8760 |
| Point to Gauge Line (Decimal Inch) | 5.6880 |
| Gage Line Clearance (Inch) | 9/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
