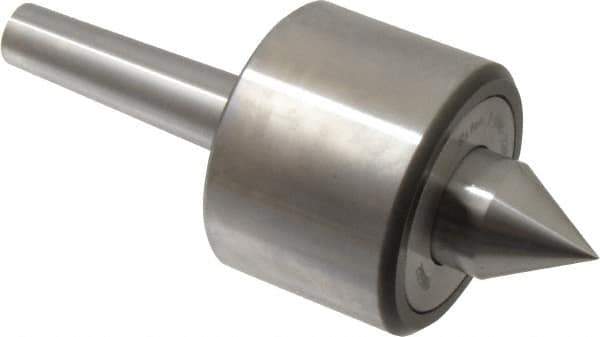

Riten - MT2 Taper Shank, 2-3/8" Head Diam 4,480 Lb Capacity Live Center - 4,000 Max RPM, 1-3/4" Head Length, 1" Point Diam, 1-1/4" Point Len, 440 Lb Max Workpc, 5.786" OAL, 1-1/4" Long Tip, Standard Point
Item #: 00620542
Brand: Riten
Model #: 48602
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 440.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Inch) | 1-1/4 |
| Accuracy (Decimal Inch) | 0.000000 |
| Tip Length (Inch) | 1-1/4 |
| Load Capacity (Lb.) | 4480.00 |
| Head Diameter (Inch) | 2-3/8 |
| Head Length (Inch) | 1-3/4 |
| Taper Length (Inch) | 2-9/16 |
| Overall Length (Decimal Inch) | 5.7860 |
| Point to Gauge Line (Decimal Inch) | 3.2500 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
