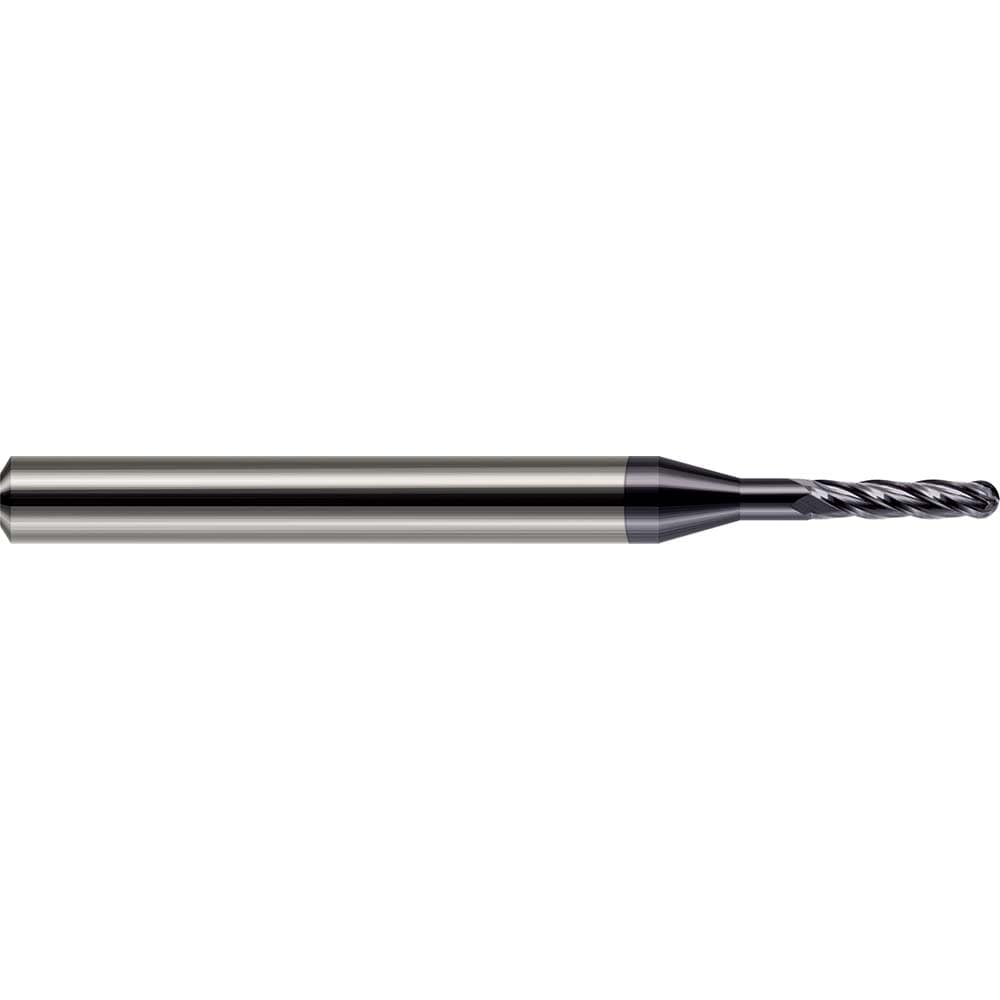

Ball End Mill: 5/64" Dia, 15/64" LOC, 4 Flute, Solid Carbide
Item #: 06449433
Brand: Harvey Tool
Model #: 734778-C3
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 15/64 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Standard |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Nose Radius (Decimal Inch) | 0.0390 |
| Neck Length (Decimal Inch) | 0.2410 |
| Reach Length (Decimal Inch) | 0.4750 |
| Mill Diameter Tolerance | +0.0005/-0.0005 in |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Miniature End Mills - Ball - Long Reach, Standard Flute, Miniature End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2340 |
| Manufacturers Catalog Number | 734778-C3 |
| System Of Measurement | Fractional Inch |
