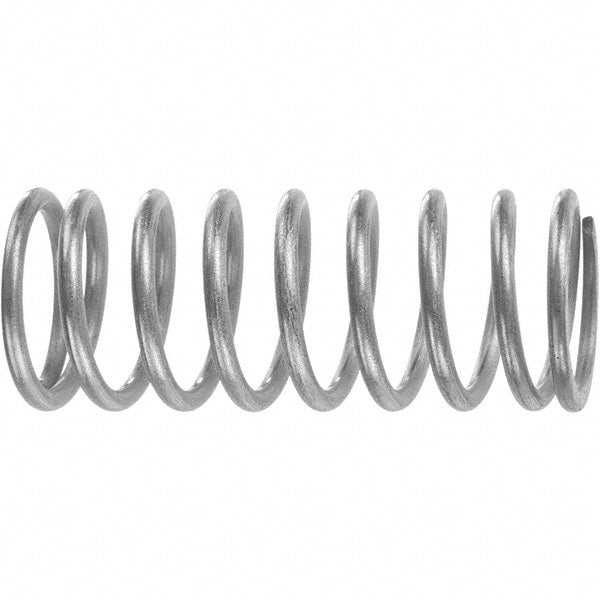

Precision Compression Spring: 0.7100" OD, 6-1/4" Free Length
Item #: 90179011
Brand: Associated Spring Raymond
Model #: C0705-105-6250M
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7100 |
| Free Length (Inch) | 6-1/4 |
| Spring Rate | 26 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 47.60 |
| Material | Carbon Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.1050 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 3.6500 |
| Free Length (Decimal Inch) | 6.2500 |
| Color | Silver |
| Standards | AMS 5112; ASTM A228 |
| Hole Diameter (Inch) | 1/2 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
