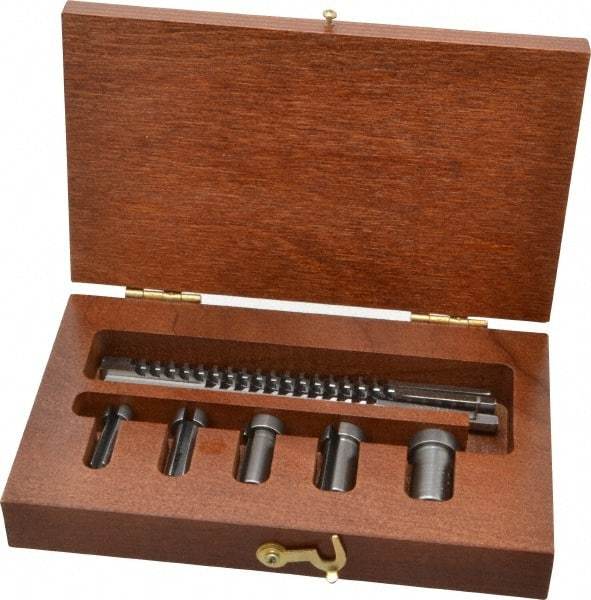

Dumont Minute Man - 8 Piece, 1/16 to 1/8" Keyway Width, Style A Keyway Broach Set - Bright Finish High Speed Steel Broach, Collared Bushing, 1/4 to 1/2" Bushing Diam
Item #: 00309104
Brand: Dumont Minute Man
Model #: 11101
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Broach Style | A |
| Minimum Keyway Width (Inch) | 1/16 |
| Maximum Keyway Width (Inch) | 1/8 |
| Minimum Bushing Diameter (Inch) | 1/4 |
| Maximum Bushing Diameter (Inch) | 1/2 |
| Bushing Type | Collared |
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 1/16; 3/32; 1/8 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Number of Pieces | 8 |
| Vendor Set Number | No. 00 |
