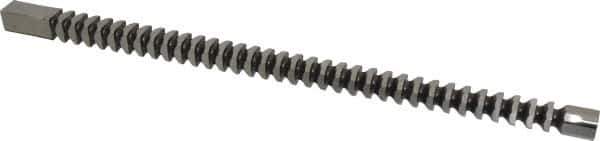

Dumont Minute Man - 3/4" x 17-3/4" Overall Length, 13/16" Pilot Hole Diam, Square Broach - 0.751 to 0.752" Tolerance, 1.045 to 1.047" Across Corners, 7/16" Pitch, 5/8 to 1-5/8" LOC, 5,940 Lbs. Pressure for Max LOC
Item #: 00307488
Brand: Dumont Minute Man
Model #: 66617
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 3/4 |
| Pilot Hole Diameter (Inch) | 13/16 |
| Pilot Hole Diameter (Decimal Inch) | 0.8125 |
| Minimum Length of Cut (Inch) | 5/8 |
| Maximum Length of Cut (Inch) | 1-5/8 |
| Minimum Dimension Across Corners (Decimal Inch) | 1.0450 |
| Maximum Dimension Across Corners (Decimal Inch) | 1.0470 |
| Overall Length (Inch) | 17-3/4 |
| Pressure Required for Maximum Length of Cut (Lb.) | 5940 |
| Tooth Pitch (Inch) | 7/16 |
| Minimum Tolerance (Decimal Inch) | 0.7510 |
| Maximum Tolerance (Decimal Inch) | 0.7520 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
