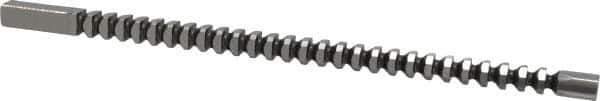

Dumont Minute Man - 7/16" x 10-7/8" Overall Length, 29/64" Pilot Hole Diam, Square Broach - 0.438 to 0.439" Tolerance, 0.611 to 0.613" Across Corners, 5/16" Pitch, 1/2 to 1-3/8" LOC, 4,500 Lbs. Pressure for Max LOC
Item #: 00307280
Brand: Dumont Minute Man
Model #: 66611
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 7/16 |
| Pilot Hole Diameter (Inch) | 29/64 |
| Minimum Length of Cut (Inch) | 1/2 |
| Maximum Length of Cut (Inch) | 1-3/8 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.6110 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.6130 |
| Overall Length (Inch) | 10-7/8 |
| Pressure Required for Maximum Length of Cut (Lb.) | 4500 |
| Tooth Pitch (Inch) | 5/16 |
| Minimum Tolerance (Decimal Inch) | 0.4380 |
| Maximum Tolerance (Decimal Inch) | 0.4390 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
