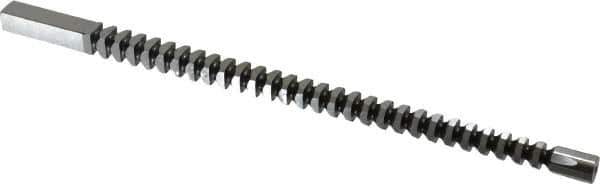

Dumont Minute Man - 3/8" x 9-3/8" Overall Length, 25/64" Pilot Hole Diam, Square Broach - 0.3755 to 0.3765" Tolerance, 0.524 to 0.526" Across Corners, 1/4" Pitch, 3/8 to 1-1/4" LOC, 3,720 Lbs. Pressure for Max LOC
Item #: 00307249
Brand: Dumont Minute Man
Model #: 66609
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 3/8 |
| Pilot Hole Diameter (Inch) | 25/64 |
| Minimum Length of Cut (Inch) | 3/8 |
| Maximum Length of Cut (Inch) | 1-1/4 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.5240 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.5260 |
| Overall Length (Inch) | 9-3/8 |
| Pressure Required for Maximum Length of Cut (Lb.) | 3720 |
| Tooth Pitch (Inch) | 1/4 |
| Minimum Tolerance (Decimal Inch) | 0.3755 |
| Maximum Tolerance (Decimal Inch) | 0.3765 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
