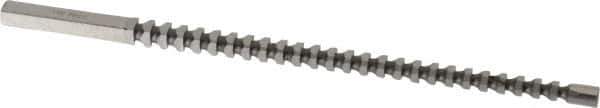

Dumont Minute Man - 3/16" x 5-9/16" Overall Length, 0.1935" Pilot Hole Diam, Square Broach - 0.188 to 0.189" Tolerance, 0.262 to 0.264" Across Corners, #10 Drill, 5/32" Pitch, 1/4 to 5/8" LOC, 1,080 Lbs. Pressure for Max LOC
Item #: 00307124
Brand: Dumont Minute Man
Model #: 66603
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 3/16 |
| Pilot Hole Diameter (Decimal Inch) | 0.1935 |
| Minimum Length of Cut (Inch) | 1/4 |
| Maximum Length of Cut (Inch) | 5/8 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.2620 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.2640 |
| Overall Length (Inch) | 5-9/16 |
| Pressure Required for Maximum Length of Cut (Lb.) | 1080 |
| Tooth Pitch (Inch) | 5/32 |
| Minimum Tolerance (Decimal Inch) | 0.1880 |
| Maximum Tolerance (Decimal Inch) | 0.1890 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Drill Size (Wire) | #10 |
