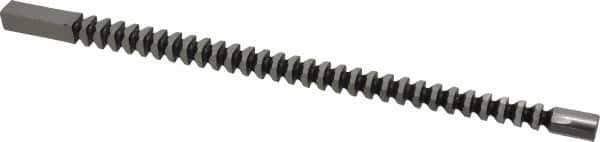

Dumont Minute Man - 12mm x 12" Overall Length, 0.5039" Pilot Hole Diam, Square Broach - 0.4724 to 0.4732" Tolerance, 0.662 to 0.664" Across Corners, 12.8mm Drill, 5/16" Pitch, 1/2 to 1-3/8" LOC, 4,200 Lbs. Pressure for Max LOC
Item #: 00294405
Brand: Dumont Minute Man
Model #: 66636
Exact Tooling IR#: 04
Features and Benefits
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (mm) | 12.00 |
| Pilot Hole Diameter (Decimal Inch) | 0.5039 |
| Minimum Length of Cut (Inch) | 1/2 |
| Maximum Length of Cut (Inch) | 1-3/8 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.6620 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.6640 |
| Overall Length (Inch) | 12 |
| Pressure Required for Maximum Length of Cut (Lb.) | 4200 |
| Tooth Pitch (Inch) | 5/16 |
| Minimum Tolerance (Decimal Inch) | 0.4724 |
| Maximum Tolerance (Decimal Inch) | 0.4732 |
| Broach Coating | Bright |
| Drill Size (mm) | 12.80 |
