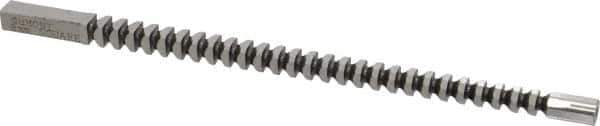

Dumont Minute Man - 8mm x 7-7/8" Overall Length, 0.3307" Pilot Hole Diam, Square Broach - 0.315 to 0.3158" Tolerance, 0.44 to 0.442" Across Corners, 8.4mm Drill, 7/32" Pitch, 3/8 to 1" LOC, 2,300 Lbs. Pressure for Max LOC
Item #: 00294363
Brand: Dumont Minute Man
Model #: 66634
Exact Tooling IR#: 04
Features and Benefits
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (mm) | 8.00 |
| Pilot Hole Diameter (Decimal Inch) | 0.3307 |
| Minimum Length of Cut (Inch) | 3/8 |
| Maximum Length of Cut (Inch) | 1 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.4400 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.4420 |
| Overall Length (Inch) | 7-7/8 |
| Pressure Required for Maximum Length of Cut (Lb.) | 2300 |
| Tooth Pitch (Inch) | 7/32 |
| Minimum Tolerance (Decimal Inch) | 0.3150 |
| Maximum Tolerance (Decimal Inch) | 0.3158 |
| Broach Coating | Bright |
| Drill Size (mm) | 8.40 |
