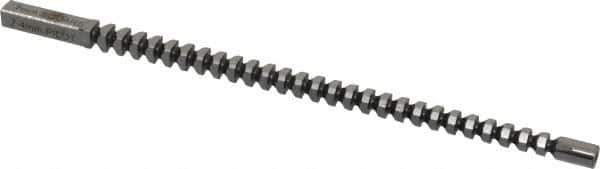

Dumont Minute Man - 7mm x 7-3/4" Overall Length, 0.2913" Pilot Hole Diam, Square Broach - 0.2756 to 0.2764" Tolerance, 0.385 to 0.387" Across Corners, 7.4mm Drill, 7/32" Pitch, 3/8 to 1" LOC, 1,800 Lbs. Pressure for Max LOC
Item #: 00294348
Brand: Dumont Minute Man
Model #: 66633
Exact Tooling IR#: 04
Features and Benefits
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (mm) | 7.00 |
| Pilot Hole Diameter (Decimal Inch) | 0.2913 |
| Minimum Length of Cut (Inch) | 3/8 |
| Maximum Length of Cut (Inch) | 1 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.3850 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.3870 |
| Overall Length (Inch) | 7-3/4 |
| Pressure Required for Maximum Length of Cut (Lb.) | 1800 |
| Tooth Pitch (Inch) | 7/32 |
| Minimum Tolerance (Decimal Inch) | 0.2756 |
| Maximum Tolerance (Decimal Inch) | 0.2764 |
| Broach Coating | Bright |
| Drill Size (mm) | 7.40 |
