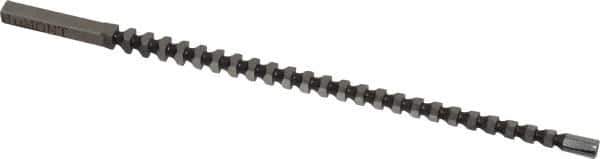

Dumont Minute Man - 4mm x 5-1/8" Overall Length, 0.1614" Pilot Hole Diam, Square Broach - 0.1575 to 0.158" Tolerance, 0.2205 to 0.222" Across Corners, 4.1mm Drill, 5/32" Pitch, 1/4 to 1/2" LOC, 480 Lbs. Pressure for Max LOC
Item #: 00294264
Brand: Dumont Minute Man
Model #: 66630
Exact Tooling IR#: 04
Features and Benefits
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (mm) | 4.00 |
| Pilot Hole Diameter (Decimal Inch) | 0.1614 |
| Minimum Length of Cut (Inch) | 1/4 |
| Maximum Length of Cut (Inch) | 1/2 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.2205 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.2220 |
| Overall Length (Inch) | 5-1/8 |
| Pressure Required for Maximum Length of Cut (Lb.) | 480 |
| Tooth Pitch (Inch) | 5/32 |
| Minimum Tolerance (Decimal Inch) | 0.1575 |
| Maximum Tolerance (Decimal Inch) | 0.1580 |
| Broach Coating | Bright |
| Drill Size (mm) | 4.10 |
