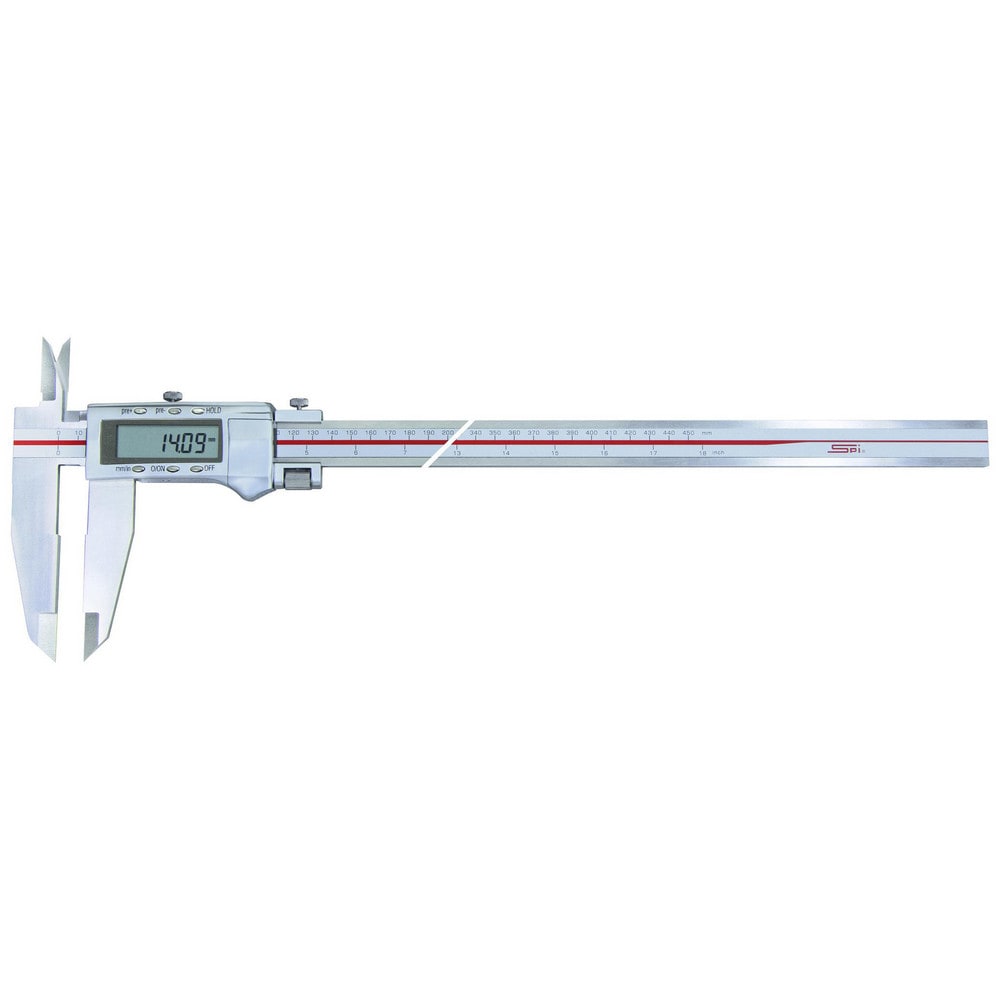

Electronic Caliper: 0 to 18", 0.0005" Resolution, No IP Rating
Item #: 83778449
Brand: SPI
Model #: MS220708249
Product Specifications
| Maximum Measurement (Decimal Inch) | 18 |
| Maximum Measurement (mm) | 450 |
| Measurement Range | 0in to 18in, 0mm to 450mm |
| Resolution | ±0.0005in, ±0.0100mm |
| Accuracy | ±0.0020in, ±0.05mm |
| Data Output | Yes |
| Data Output Type | For use with SPC Output Cable |
| Ip Rating | None |
| Calibrated | No |
| Caliper Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Jaw Style | Outside |
| Jaw Length (Decimal Inch) | 3.9375 |
| Jaw Type | Double |
| Offset Jaw | No |
| Minimum Inside Diameter Measurement (Decimal Inch) | 0.0000 |
| Maximum Inside Diameter Measurement (Inch) | 18.0000 |
| Jaw Adjustment Type | Fine-Adjustment Wheel |
| Power Source | Battery |
| Batteries Included | Yes |
| Number Of Batteries | 1 |
| Battery Chemistry | Lithium |
| Battery Size | CR2032 |
| Finish | Stainless Steel |
| Overall Length (Decimal Inch) | 24.6000 |
| Includes Inside Diameter Jaws | Yes |
| Includes Depth Measurement Rod | No |
| Includes | Plastic Box |
| Standards | ASME B89.1.14 |
| Jaw Thickness (Decimal Inch) | 0.2400 |
| UNSPSC Code | 41111621 |
| Country of Origin | China |
