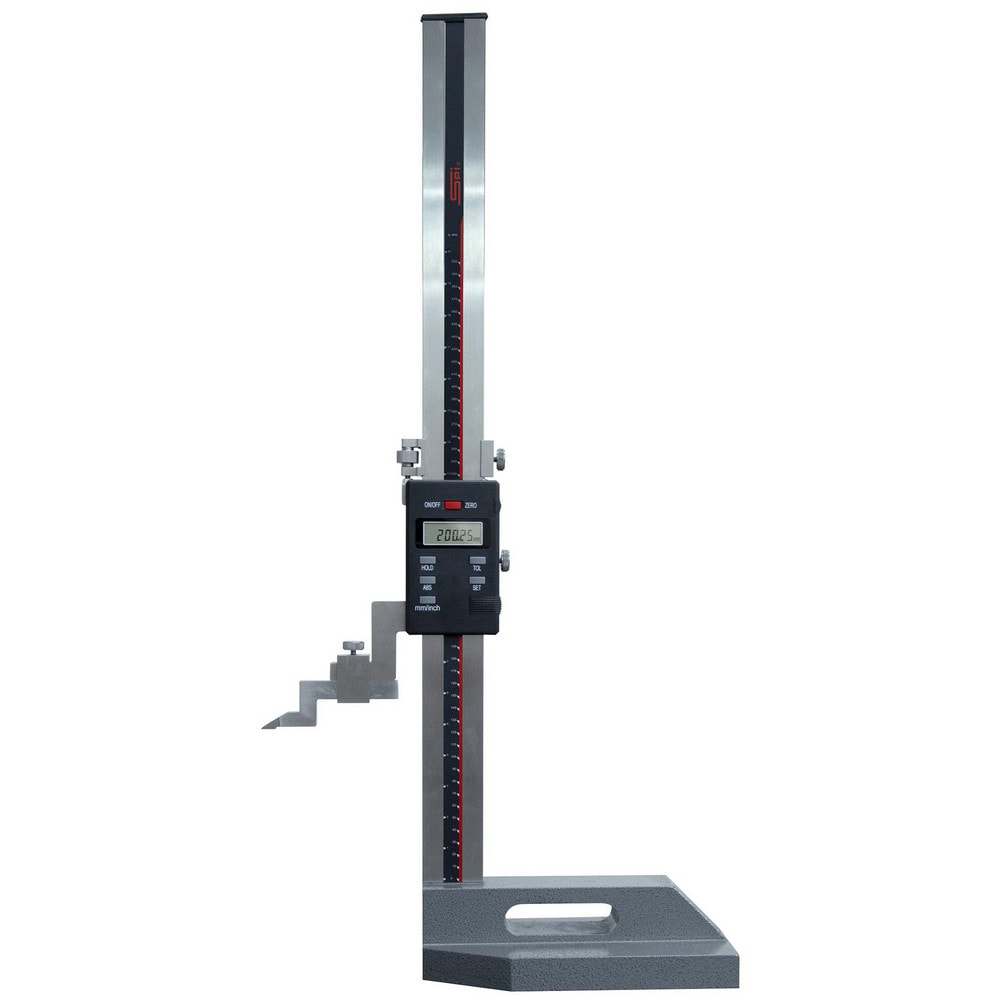

Electronic Height Gage: 40" Max, 0.0005" Resolution, +/-0.0030" Accuracy
Item #: 83778894
Brand: SPI
Model #: MS220708181
Product Specifications
| Maximum Measurement (Inch) | 40 |
| Perpendicularity (Decimal Inch) | 0.0002 |
| Base Length (Inch) | 9-27/32 |
| Base Width/Diameter (Inch) | 6 |
| Mechanism | Coarse & Fine Adjustment |
| Accuracy (Decimal Inch) | +/-0.0030 |
| Material | Stainless Steel |
| Resolution (Decimal Inch) | 0.0005 |
| Display Type | Digital |
| Data Output | SPC |
| Batteries Included | Yes |
| Number Of Batteries | 1 |
| Battery Chemistry | Alkaline |
| Battery Size | LR44 |
| Rechargeable Battery | No |
| Calibrated | No |
| Traceability Certification Included | None |
| Features | Can Be Used With A Test Indicator And Holder For Precise Measurement; Origin Memory Eliminates The Need To Zero The Reading Each Time The Height Gauge Is Turned On; Inch/Metric Conversion; The Fine Adjustment Allows The Slider To Be Precisely Positioned |
| Standards | ASME B89.1.14 |
| Graduation Scale (Decimal Inch) | 0.00 |
| Length (Inch) | 50 |
| UNSPSC Code | 41111614 |
| Country of Origin | China |
