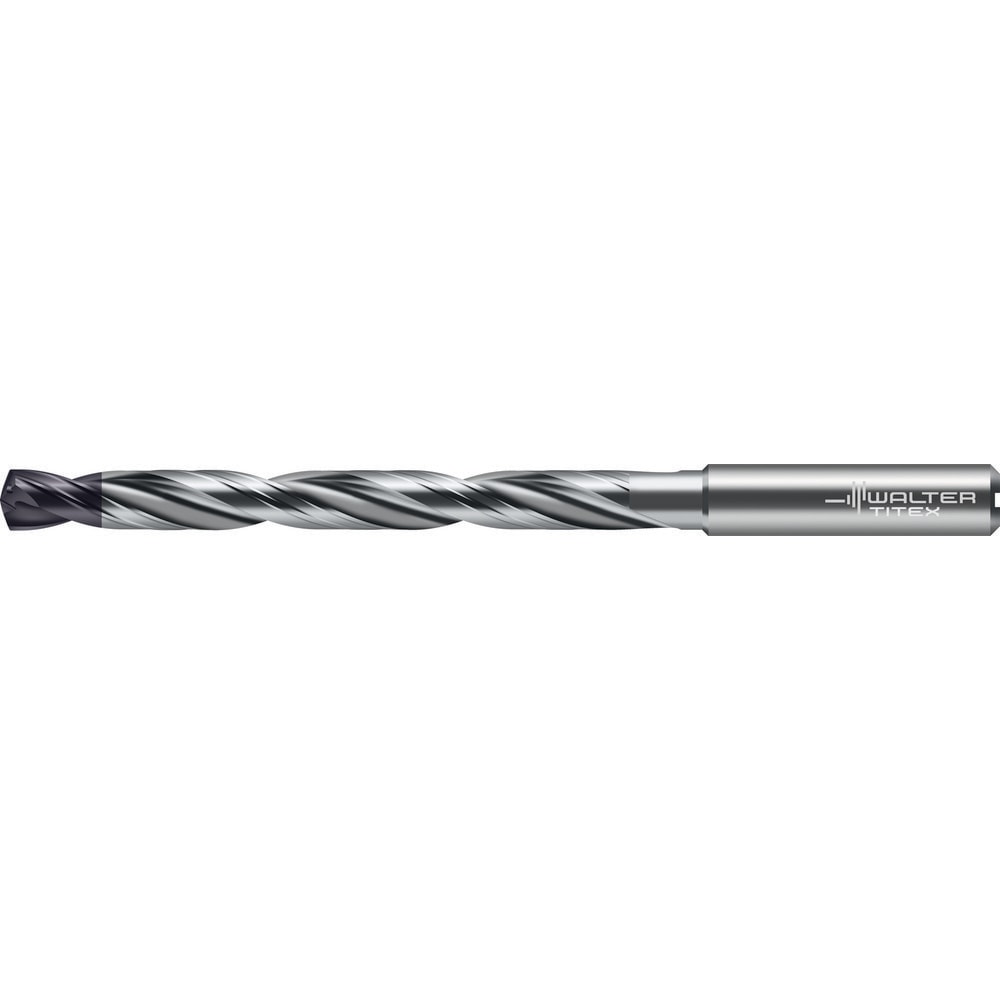

Jobber Length Drill Bits; Drill Bit Size (Inch): 5/16; Drill Bit Size (mm): 7.94; Drill Bit Size (Decimal Inch): 0.3125; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: ZrN
Item #: 83764449
Brand: Walter-Titex
Model #: 8325136
Product Specifications
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (mm) | 7.94 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 116.00 |
| Overall Length (Decimal Inch) | 4.5669 |
| Spiral Type | Regular |
| Flute Length (mm) | 76.00 |
| Flute Length (Decimal Inch) | 2.9921 |
| Series | DC180 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (Decimal Inch) | 2.5197 |
| Maximum Drilling Depth (mm) | 64 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.44 |
| Drill Point Length (Decimal Inch) | 0.0569 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | UNITED STATES |
