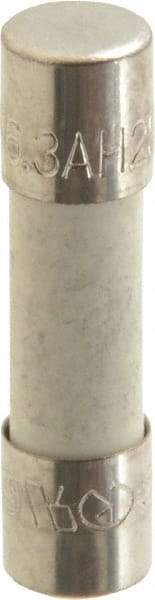

Ferraz Shawmut - 250 VAC, 6.3 Amp, Fast-Acting Miniature Ceramic Fuse - Clip Mount, 20mm OAL, 5mm Diam
Item #: 00177808
Brand: Ferraz Shawmut
Model #: GSD6-3/10-MSC
Exact Tooling IR#: 04
Features and Benefits
Miniature ceramic fuses are constructed of a conductive metal placed on a small ceramic body. They are more durable than glass bodies and are commonly used in appliances and electronics.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Ceramic |
| Amperage | 6.30 |
| Voltage | 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 20 |
| Overall Diameter (mm) | 5.00 |
| Material | Ceramic |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (A) | 1500 @ AC |
| Standards Met | BSI Approved; CSA Certified; IEC 127-2; KEMA Approved; SEMKO Approved; UL Listed; VDE Approved |
