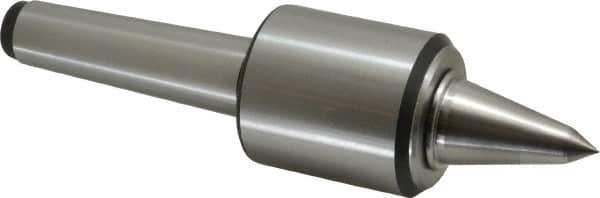

Royal Products - MT4 Taper Shank, 2.45" Head Diam 1,905 Lb Capacity Carbide Tipped Live Center - 12,000 Max RPM, 2.78" Head Length, 1-1/4" Point Diam, 2.35" Point Len, 525 Lb Max Workpc, 9-5/8" OAL, 1/2" Tip Diam, Long Point
Item #: 00102640
Brand: Royal Products
Model #: 10694
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 525.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 2.3500 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 1905.00 |
| Thrust Load (Lb.) | 1380.00 |
| Radial Load (Lb.) | 525.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.7800 |
| Shank Length (Decimal Inch) | 4.4375 |
| Overall Length (Inch) | 9-5/8 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 12000 |
| Material | Steel |
| Carbide-Tipped | Yes |
