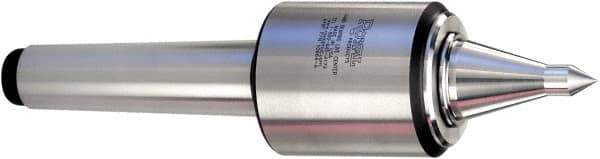

Royal Products - MT6 HD Taper Shank, 3.82" Head Diam 5,300 & 7,510 Lb Capacity Live Center - 3,000 Max RPM, 3.89" Head Length, 2" Point Diam, 3.34" Point Len, 5,240 Lb Max Workpc, 14-13/16" OAL, 3/4" Tip Diam, Long Point
Item #: 00102467
Brand: Royal Products
Model #: 10476
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 HD |
| Maximum Workpiece Weight (Lb.) | 5240.00 |
| Point Style | Long |
| Point Diameter (Inch) | 2 |
| Point Diameter (Decimal Inch) | 2.0000 |
| Tip Diameter (Inch) | 3/4 |
| Tip Diameter (Decimal Inch) | 0.7500 |
| Point Length (Decimal Inch) | 3.3400 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5300.00; 7510.00 |
| Thrust Load (Lb.) | 6000.00 |
| Radial Load (Lb.) | 2210.00 |
| Head Diameter (Decimal Inch) | 3.8200 |
| Head Length (Decimal Inch) | 3.8900 |
| Shank Length (Decimal Inch) | 7.7500 |
| Overall Length (Inch) | 14-13/16 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 3000 |
| Material | Steel |
| Carbide-Tipped | No |
