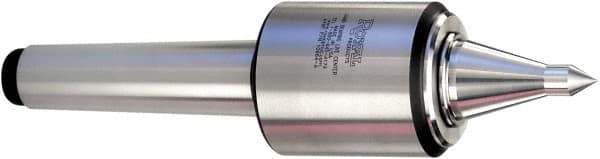

Royal Products - MT5 Taper Shank, 2.45" Head Diam 3,380 Lb Capacity Live Center - 5,000 Max RPM, 2.78" Head Length, 1-1/4" Point Diam, 2.35" Point Len, 2,240 Lb Max Workpc, 10-3/4" OAL, 1/2" Tip Diam, Long Point
Item #: 00102350
Brand: Royal Products
Model #: 10665
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2240.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 2.3500 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 3380.00 |
| Thrust Load (Lb.) | 2150.00 |
| Radial Load (Lb.) | 1230.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.7800 |
| Shank Length (Decimal Inch) | 5.5625 |
| Overall Length (Inch) | 10-3/4 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
