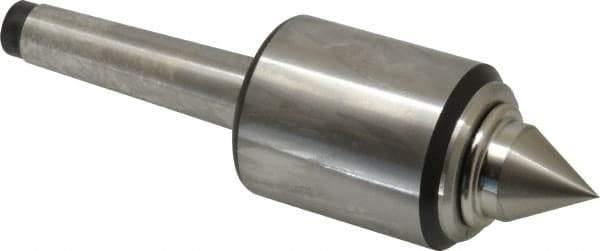

Royal Products - MT2 Taper Shank, 1-3/4" Head Diam 2,155 Lb Capacity Live Center - 6,000 Max RPM, 2.12" Head Length, 7/8" Point Diam, 1.07" Point Len, 885 Lb Max Workpc, 5-13/16" OAL, 3/8" Tip Diam, Standard Point
Item #: 00101923
Brand: Royal Products
Model #: 10412
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 885.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Tip Diameter (Inch) | 3/8 |
| Point Length (Decimal Inch) | 1.0700 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 2155.00 |
| Thrust Load (Lb.) | 1270.00 |
| Radial Load (Lb.) | 885.00 |
| Head Diameter (Decimal Inch) | 1.7000 |
| Head Diameter (Inch) | 1-3/4 |
| Head Length (Decimal Inch) | 2.1200 |
| Shank Length (Decimal Inch) | 2.8125 |
| Overall Length (Inch) | 5-13/16 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 6000 |
| Material | Steel |
| Carbide-Tipped | No |
