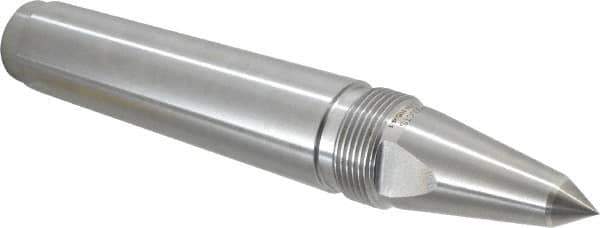

Royal Products - 1.231" Head Diam, Carbide-Tipped Steel Long Point Solid Dead Center - 4MT Morse Taper, 1/2" Point Diam, 7-5/16" OAL
Item #: 00100842
Brand: Royal Products
Model #: 11541
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 4MT |
| Point Style | Long Point |
| Carbide-Tipped | Yes |
| Head Diameter (Decimal Inch) | 1.2310 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Taper Length (Decimal Inch) | 4.0600 |
| Overall Length (Inch) | 7-5/16 |
| Overall Length (Decimal Inch) | 7.3125 |
| Point to Gauge Line (Decimal Inch) | 3.2500 |
| Included Angle | 60.00 |
| Thread Size | 1-1/4 - 14 |
