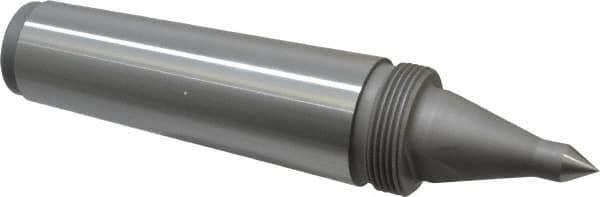

Royal Products - 1.748" Head Diam, Hardened Steel Long Point Solid Dead Center - 5MT Morse Taper, 1/2" Point Diam, 0.81" Point Length, 8-7/16" OAL
Item #: 00100750
Brand: Royal Products
Model #: 11532
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 5MT |
| Point Style | Long Point |
| Carbide-Tipped | No |
| Head Diameter (Decimal Inch) | 1.7480 |
| Point Length (Decimal Inch) | 0.8100 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Taper Length (Decimal Inch) | 5.1900 |
| Overall Length (Inch) | 8-7/16 |
| Overall Length (Decimal Inch) | 8.4375 |
| Point to Gauge Line (Decimal Inch) | 3.2500 |
| Included Angle | 60.00 |
| Thread Size | 1-3/4 - 12 |
