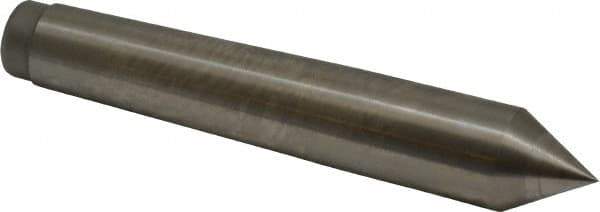

Royal Products - 0.7" Head Diam, High Speed Steel Standard Point Solid Dead Center - 2MT Morse Taper, 0.7" Point Diam, 4-3/16" OAL
Item #: 00100321
Brand: Royal Products
Model #: 11011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Center Type | Solid Center |
| Shank Type | Morse Taper |
| Shank Taper Size | 2MT |
| Point Style | Standard Point |
| Carbide-Tipped | No |
| Head Diameter (Decimal Inch) | 0.7000 |
| Point Diameter (Decimal Inch) | 0.7000 |
| Tip Diameter (Decimal Inch) | 0.3800 |
| Taper Length (Decimal Inch) | 2.5600 |
| Overall Length (Inch) | 4-3/16 |
| Overall Length (Decimal Inch) | 4.1875 |
| Point to Gauge Line (Decimal Inch) | 1.6300 |
| Included Angle | 60.00 |
