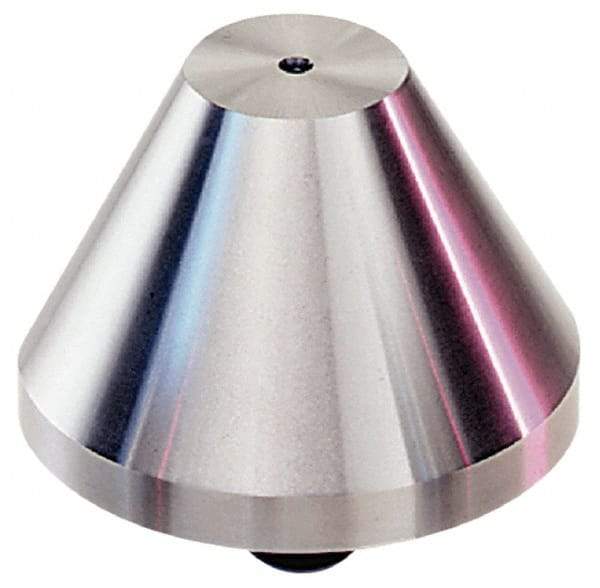

Royal Products - 3/4-16" Thread, 4MT & 5MT Taper, 1-3/8 to 3-1/2" Point Diam, Tool Steel Lathe Bull Nose Point - 2-3/8" OAL
Item #: 00099812
Brand: Royal Products
Model #: R125519
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Product Type | Point |
| Center Compatibility | Live Center |
| Point Style | Bull Nose Point |
| Minimum Point Diameter (Inch) | 1-3/8 |
| Minimum Point Diameter (Decimal Inch) | 1.3750 |
| Maximum Point Diameter (Inch) | 3-1/2 |
| Maximum Point Diameter (Decimal Inch) | 3.5000 |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 2-3/8 |
| Accuracy (Decimal Inch) | 0.000050 |
| Product Compatibility | Changeable Point Live Centers |
| Taper Size | 4MT; 5MT |
| Thread Size | 3/4-16 |
| Material | Tool Steel |
