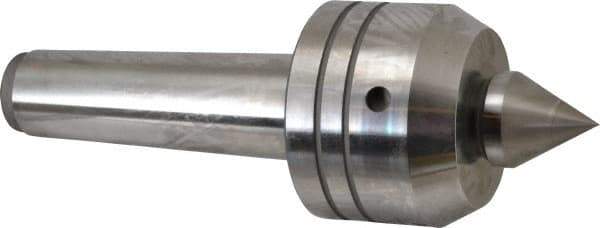

Royal Products - MT5 Taper Shank, 3-1/2" Head Diam 2,880 Lb Capacity Live Center - 3,500 Max RPM, 2.64" Head Length, 1-1/2" Point Diam, 1.79" Point Len, 1,070 Lb Max Workpc, 10-1/16" OAL, Changeable Standard Point
Item #: 00099556
Brand: Royal Products
Model #: 10005
Exact Tooling IR#: 04
Features and Benefits
Changeable standard points are designed to be used with several points for a variety of turning operations. They seat in the same location when changed to ensure accuracy during an operation.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1070.00 |
| Point Style | Changeable Standard |
| Point Diameter (Inch) | 1-1/2 |
| Point Diameter (Decimal Inch) | 1.5000 |
| Point Length (Decimal Inch) | 1.7900 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 2880.00 |
| Thrust Load (Lb.) | 1810.00 |
| Radial Load (Lb.) | 1070.00 |
| Head Diameter (Decimal Inch) | 3.5000 |
| Head Diameter (Inch) | 3-1/2 |
| Head Length (Decimal Inch) | 2.6400 |
| Taper Length (Inch) | 5-5/8 |
| Shank Length (Decimal Inch) | 5.1900 |
| Overall Length (Inch) | 10-1/16 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 3500 |
| Material | Steel |
| Carbide-Tipped | No |
