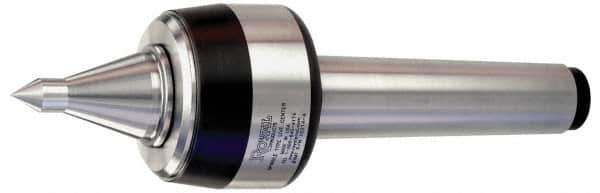

Royal Products - MT6 Taper Shank, 4" Head Diam 8,420 Lb Capacity Live Center - 3,500 Max RPM, 3.15" Head Length, 2" Point Diam, 3" Point Len, 2,420 Lb Max Workpc, 13-29/32" OAL, 3/4" Tip Diam, Long Point
Item #: 00099366
Brand: Royal Products
Model #: 10216
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 2420.00 |
| Point Style | Long |
| Point Diameter (Inch) | 2 |
| Point Diameter (Decimal Inch) | 2.0000 |
| Tip Diameter (Inch) | 3/4 |
| Tip Diameter (Decimal Inch) | 0.7500 |
| Point Length (Inch) | 3 |
| Point Length (Decimal Inch) | 3.0000 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 8420.00 |
| Thrust Load (Lb.) | 6000.00 |
| Radial Load (Lb.) | 2420.00 |
| Head Diameter (Decimal Inch) | 4.0000 |
| Head Diameter (Inch) | 4 |
| Head Length (Decimal Inch) | 3.1500 |
| Shank Length (Decimal Inch) | 7.7500 |
| Overall Length (Inch) | 13-29/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 3500 |
| Material | Steel |
| Carbide-Tipped | No |
