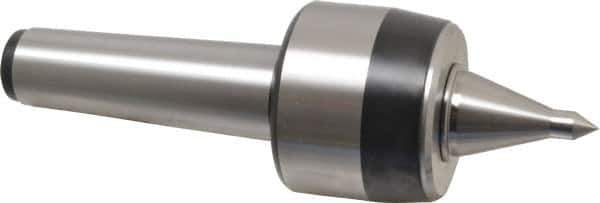

Royal Products - MT5 Taper Shank, 3.45" Head Diam 7,630 Lb Capacity Live Center - 3,500 Max RPM, 2.81" Head Length, 1-1/2" Point Diam, 2.58" Point Len, 1,930 Lb Max Workpc, 11" OAL, 1/2" Tip Diam, Long Point
Item #: 00099358
Brand: Royal Products
Model #: 10215
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1930.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1-1/2 |
| Point Diameter (Decimal Inch) | 1.5000 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 2.5800 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 7630.00 |
| Thrust Load (Lb.) | 5700.00 |
| Radial Load (Lb.) | 1930.00 |
| Head Diameter (Decimal Inch) | 3.4500 |
| Head Length (Decimal Inch) | 2.8100 |
| Shank Length (Decimal Inch) | 5.5625 |
| Overall Length (Inch) | 11 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 3500 |
| Material | Steel |
| Carbide-Tipped | No |
