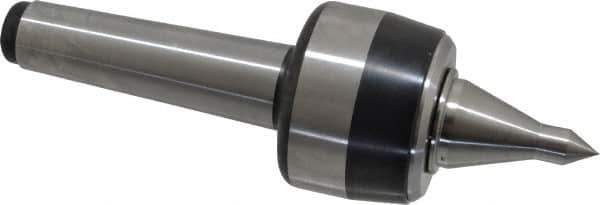

Royal Products - MT4 Taper Shank, 2.68" Head Diam 5,170 Lb Capacity Live Center - 4,500 Max RPM, 1.98" Head Length, 1-1/4" Point Diam, 2.18" Point Len, 1,120 Lb Max Workpc, 8-5/8" OAL, 1/2" Tip Diam, Long Point
Item #: 00099341
Brand: Royal Products
Model #: 10214
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1120.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Tip Diameter (Inch) | 1/2 |
| Tip Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 2.1800 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5170.00 |
| Thrust Load (Lb.) | 4050.00 |
| Radial Load (Lb.) | 1120.00 |
| Head Diameter (Decimal Inch) | 2.6800 |
| Head Length (Decimal Inch) | 1.9800 |
| Shank Length (Decimal Inch) | 4.4375 |
| Overall Length (Inch) | 8-5/8 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
