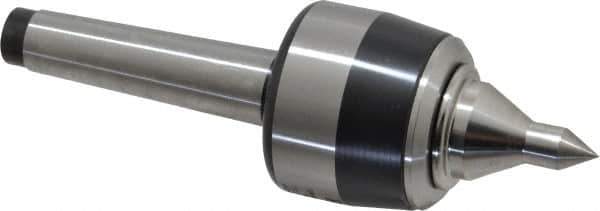

Royal Products - MT2 Taper Shank, 1-3/4" Head Diam 2,735 Lb Capacity Live Center - 6,000 Max RPM, 1.47" Head Length, 7/8" Point Diam, 1.35" Point Len, 375 Lb Max Workpc, 5-3/8" OAL, 3/8" Tip Diam, Long Point
Item #: 00099325
Brand: Royal Products
Model #: 10212
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 375.00 |
| Point Style | Long |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Tip Diameter (Inch) | 3/8 |
| Tip Diameter (Decimal Inch) | 0.3750 |
| Point Length (Decimal Inch) | 1.3500 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 2735.00 |
| Thrust Load (Lb.) | 2360.00 |
| Radial Load (Lb.) | 375.00 |
| Head Diameter (Decimal Inch) | 1.7500 |
| Head Diameter (Inch) | 1-3/4 |
| Head Length (Decimal Inch) | 1.4700 |
| Shank Length (Decimal Inch) | 2.8125 |
| Overall Length (Inch) | 5-3/8 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 6000 |
| Material | Steel |
| Carbide-Tipped | No |
