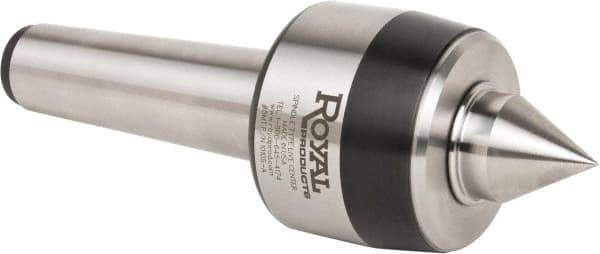

Royal Products - MT5 Taper Shank, 3.45" Head Diam 8,960 Lb Capacity Live Center - 3,500 Max RPM, 2.81" Head Length, 1-1/4" Point Diam, 1.84" Point Len, 3,260 Lb Max Workpc, 10-1/4" OAL, Standard Point
Item #: 00099150
Brand: Royal Products
Model #: 10105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 3260.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Point Length (Decimal Inch) | 1.8400 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 8960.00 |
| Thrust Load (Lb.) | 5700.00 |
| Radial Load (Lb.) | 3260.00 |
| Head Diameter (Decimal Inch) | 3.4500 |
| Head Length (Decimal Inch) | 2.8100 |
| Shank Length (Inch) | 5-9/16 |
| Shank Length (Decimal Inch) | 5.5625 |
| Overall Length (Inch) | 10-1/4 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 3500 |
| Material | Steel |
| Carbide-Tipped | No |
