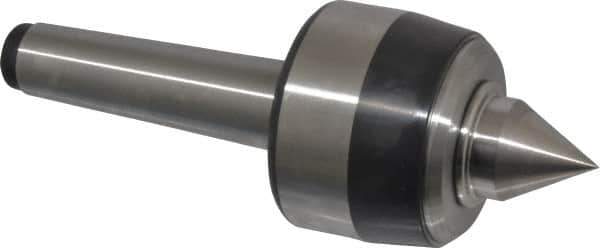

Royal Products - MT3 Taper Shank, 2.33" Head Diam 4,870 Lb Capacity Live Center - 5,000 Max RPM, 1-3/4" Head Length, 1" Point Diam, 1.22" Point Len, 970 Lb Max Workpc, 6-13/32" OAL, Standard Point
Item #: 00099135
Brand: Royal Products
Model #: 10103
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 970.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Decimal Inch) | 1.2200 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4870.00 |
| Thrust Load (Lb.) | 3900.00 |
| Radial Load (Lb.) | 970.00 |
| Head Diameter (Decimal Inch) | 2.3300 |
| Head Length (Decimal Inch) | 1.7500 |
| Shank Length (Inch) | 3-7/16 |
| Shank Length (Decimal Inch) | 3.4375 |
| Overall Length (Inch) | 6-13/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
