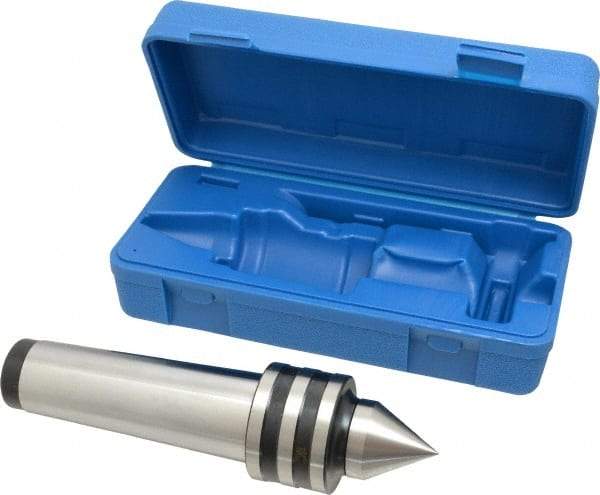

Interstate - MT5 Taper Shank, 2-9/32" Head Diam 1,397 Lb Capacity Live Center - 1-9/16" Head Length, 1-1/2" Point Diam, 1.9063" Point Len, 1,590 Lb Max Workpc, 8-25/32" OAL, Standard Point
Item #: 00098152
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1590.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/2 |
| Point Diameter (Decimal Inch) | 1.5000 |
| Point Length (Inch) | 1.9063 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 1397.00 |
| Head Diameter (Inch) | 2-9/32 |
| Head Length (Inch) | 1-9/16 |
| Shank Length (Inch) | 5-21/64 |
| Overall Length (Inch) | 8-25/32 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Material | Steel |
| Carbide-Tipped | No |
