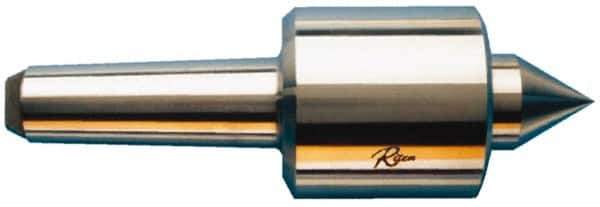

Riten - MT7 Taper Shank, 6-9/16" Head Diam 45,000 Lb Capacity Live Center - 3,000 Max RPM, 5-3/32" Head Length, 2-5/8" Point Diam, 2-1/2" Point Len, 22,500 Lb Max Workpc, Standard Point
Item #: 00093278
Brand: Riten
Model #: 55107
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT7 |
| Maximum Workpiece Weight (Lb.) | 22500.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 2-5/8 |
| Point Diameter (Decimal Inch) | 2.6250 |
| Point Length (Inch) | 2-1/2 |
| Point Length (Decimal Inch) | 2.5000 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 45000.00 |
| Head Diameter (Inch) | 6-9/16 |
| Head Length (Inch) | 5-3/32 |
| Gage Line Clearance (Inch) | 3/4 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 3000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
