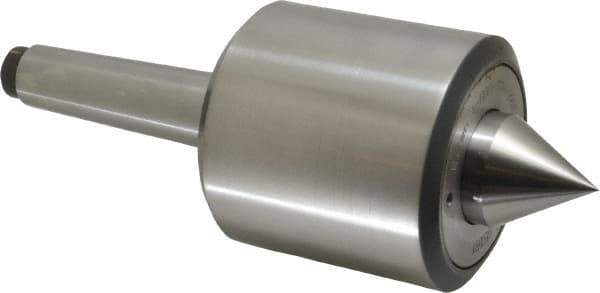

Riten - MT4 Taper Shank, 3-3/4" Head Diam 10,900 Lb Capacity Live Center - 4,000 Max RPM, 3-27/32" Head Length, 1.6563" Point Diam, 1-3/4" Point Len, 4,800 Lb Max Workpc, Standard Point
Item #: 00093245
Brand: Riten
Model #: 55164
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 4800.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1.6563 |
| Point Diameter (Decimal Inch) | 1.6563 |
| Point Length (Inch) | 1-3/4 |
| Point Length (Decimal Inch) | 1.7500 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 10900.00 |
| Head Diameter (Inch) | 3-3/4 |
| Head Length (Inch) | 3-27/32 |
| Gage Line Clearance (Inch) | 1/2 |
| Included Angle | 60.00 |
| Bearing Type | Quad Bearing |
| Maximum RPM | 4000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
