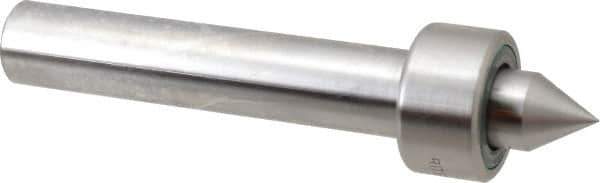

Riten - Straight Shank, 1-11/16" Head Diam 4,250 Lb Capacity Live Center - 1,000 Max RPM, 15/16" Long Case, 7/8" Point Diam, 1" Point Len, 1,000 Lb Max Workpiece, Standard Point
Item #: 00091538
Brand: Riten
Model #: 12304
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Taper Size | Straight |
| Shank Diameter (Inch) | 1 |
| Maximum Workpiece Weight (Lb.) | 1000.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 7/8 |
| Point Diameter (Decimal Inch) | 0.8750 |
| Point Length (Inch) | 1 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4250.00 |
| Head Diameter (Inch) | 1-11/16 |
| Head Length (Inch) | 15/16 |
| Gage Line Clearance (Inch) | 5 |
| Included Angle | 60.00 |
| Maximum RPM | 1000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
