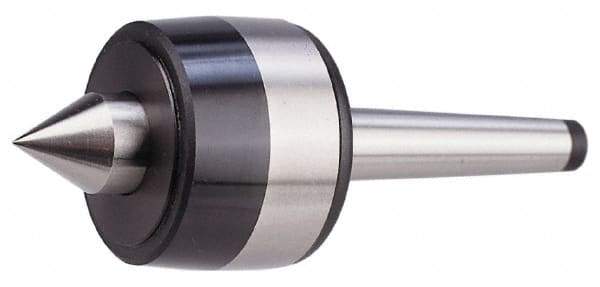

Bison - MT6 Taper Shank Shank, 5.12" Head Diam, 7,700 Lb Capacity, Live Center - 2,000 Max RPM, 2.48" Point Diam, 2.52" Point Len, 7,700 Lb Max Workpc, Standard Point
Item #: 00091066
Brand: Bison
Model #: 7-565-006
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 7700.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 2.4800 |
| Point Length (Decimal Inch) | 2.5200 |
| Accuracy (Decimal Inch) | 0.000400 |
| Tip Length (Decimal Inch) | 2.5200 |
| Load Capacity (Lb.) | 7700.00 |
| Head Diameter (Decimal Inch) | 5.1200 |
| Overall Length (Decimal Inch) | 13.1300 |
| Point to Gauge Line (Decimal Inch) | 5.9600 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2000 |
| Material | Steel |
| Carbide-Tipped | No |
