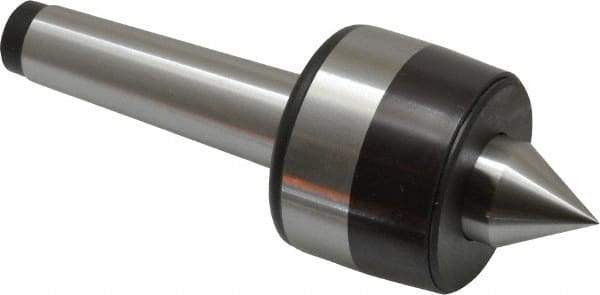

Bison - MT3 Taper Shank, 2.2" Head Diam 925 Lb Capacity Live Center - 4,000 Max RPM, 0.98" Point Diam, 1.12" Point Len, 925 Lb Max Workpc, 6.14" OAL, 1.12" Long Tip, Standard Point
Item #: 00091033
Brand: Bison
Model #: 7-565-003
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 925.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.9800 |
| Point Length (Decimal Inch) | 1.1200 |
| Accuracy (Decimal Inch) | 0.000300 |
| Tip Length (Decimal Inch) | 1.1200 |
| Load Capacity (Lb.) | 925.00 |
| Head Diameter (Decimal Inch) | 2.2000 |
| Overall Length (Decimal Inch) | 6.1400 |
| Point to Gauge Line (Decimal Inch) | 2.9500 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4000 |
| Material | Steel |
| Carbide-Tipped | No |
