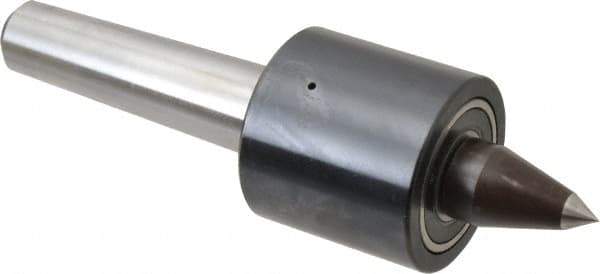

Riten - MT3 Taper Shank, 2" Head Diam 1,830 Lb Capacity Live Center - 2,500 Max RPM, 1-15/16" Head Length, 3/8" Point Diam, 1-1/2" Point Len, 300 Lb Max Workpc, Tracer Point
Item #: 00090068
Brand: Riten
Model #: 44903
Exact Tooling IR#: 04
Features and Benefits
Tracer points, also known as CNC points, are used with large workpieces in CNC and manual turning operations.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 300.00 |
| Point Style | Tracer |
| Point Diameter (Inch) | 3/8 |
| Point Diameter (Decimal Inch) | 0.3750 |
| Point Length (Inch) | 1-1/2 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 1830.00 |
| Head Diameter (Inch) | 2 |
| Head Length (Inch) | 1-15/16 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
