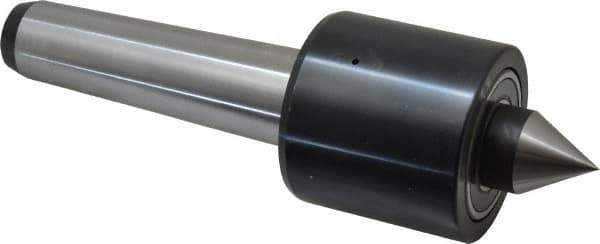

Riten - MT4 Taper Shank, 2-3/8" Head Diam 2,200 Lb Capacity Live Center - 2,500 Max RPM, 2-1/4" Head Length, 1" Point Diam, 1-1/4" Point Len, 1,100 Lb Max Workpc, Standard Point
Item #: 00090027
Brand: Riten
Model #: 44104
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1100.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Inch) | 1-1/4 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 2200.00 |
| Head Diameter (Inch) | 2-3/8 |
| Head Length (Inch) | 2-1/4 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
