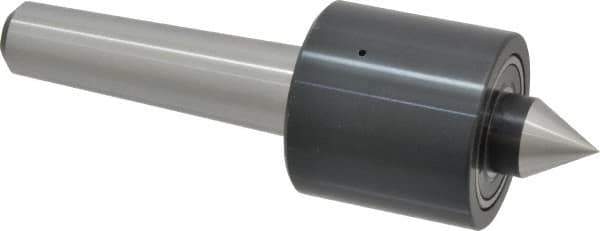

Riten - MT3 Taper Shank, 2" Head Diam 1,830 Lb Capacity Live Center - 2,500 Max RPM, 1-15/16" Head Length, 13/16" Point Diam, 1" Point Len, 500 Lb Max Workpc, Standard Point
Item #: 00090019
Brand: Riten
Model #: 44103
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 500.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 13/16 |
| Point Diameter (Decimal Inch) | 0.8125 |
| Point Length (Inch) | 1 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 1830.00 |
| Head Diameter (Inch) | 2 |
| Head Length (Inch) | 1-15/16 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
