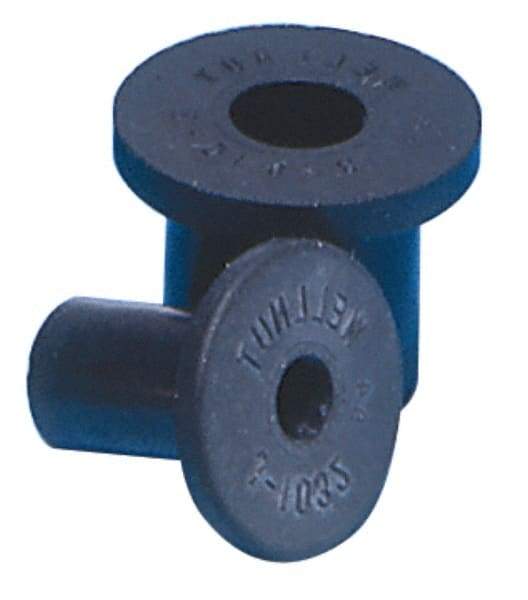

RivetKing - #10-32, 0.562" Diam x 0.04" Thick Flange, Rubber Insulated Rivet Nut - UNF Thread, Rubber, 0.377" Body Diam, 0.665" OAL
Item #: 00075168
Brand: RivetKing
Model #: JF-5170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #10-32 |
| Body Diameter (Decimal Inch) | 0.3770 |
| Flange Diameter (Decimal Inch) | 0.5620 |
| Overall Length (Decimal Inch) | 0.6650 |
| Minimum Grip (Decimal Inch) | 0.0350 |
| Maximum Grip (Decimal Inch) | 0.2320 |
| Flange Thickness (Decimal Inch) | 0.0400 |
| Nut Material | Brass |
| Body Material | Rubber |
| Thread Standard | UNF |
