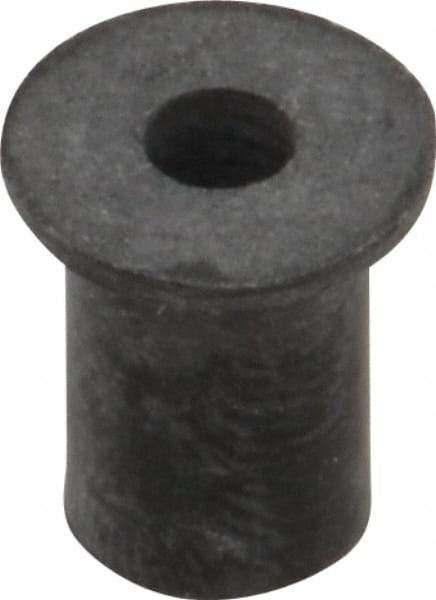

RivetKing - #6-32, 0.452" Diam x 0.062" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Rubber, 5/16" Body Diam, 1/2" OAL
Item #: 00075143
Brand: RivetKing
Model #: JF-3100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #6-32 |
| Body Diameter (Decimal Inch) | 0.3120 |
| Flange Diameter (Decimal Inch) | 0.4520 |
| Overall Length (Decimal Inch) | 0.4990 |
| Minimum Grip (Decimal Inch) | 0.0150 |
| Maximum Grip (Decimal Inch) | 0.1560 |
| Flange Thickness (Decimal Inch) | 0.0620 |
| Nut Material | Brass |
| Body Material | Rubber |
| Thread Standard | UNC |
