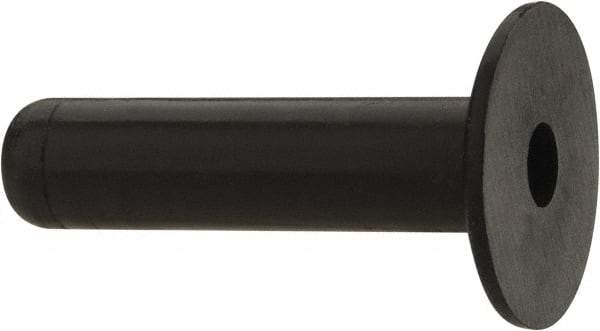

RivetKing - #6-32, 0.554" Diam x 0.035" Thick Flange, Rubber Insulated Rivet Nut - UNC Thread, Rubber, 0.24" Body Diam, 0.981" OAL
Item #: 00075135
Brand: RivetKing
Model #: JF-3250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #6-32 |
| Body Diameter (Decimal Inch) | 0.2400 |
| Flange Diameter (Decimal Inch) | 0.5540 |
| Overall Length (Decimal Inch) | 0.9810 |
| Minimum Grip (Decimal Inch) | 0.3750 |
| Maximum Grip (Decimal Inch) | 0.6070 |
| Flange Thickness (Decimal Inch) | 0.0350 |
| Nut Material | Brass |
| Body Material | Rubber |
| Thread Standard | UNC |
