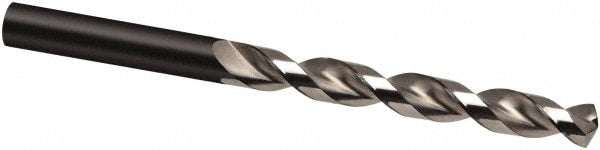

Jobber Drill: 5.20 mm Dia, 130 deg Point, Cobalt
Item #: 71399661
Brand: Guhring
Model #: 9006220052000
Product Specifications
| Drill Bit Size (mm) | 5.20 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Straw |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Series | 622 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.2 |
| Maximum Drilling Depth (Decimal Inch) | 1.2500 |
| Maximum Drilling Depth (mm) | 44.20 |
| Shank Length (mm) | 34 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 5.20 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Straw |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Series | 622 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.2 |
| Maximum Drilling Depth (Decimal Inch) | 1.2500 |
| Maximum Drilling Depth (mm) | 44.20 |
| Shank Length (mm) | 34 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 71399661 |
| Mfr Part # | 9006220052000 |
| Country of Origin Country of Origin is subject to change | Germany |
